Padmounted Equipment Clearance and Working Space Details

Elements

Walls Doors Windows Roofs Roof / Floor Openings

About this detail

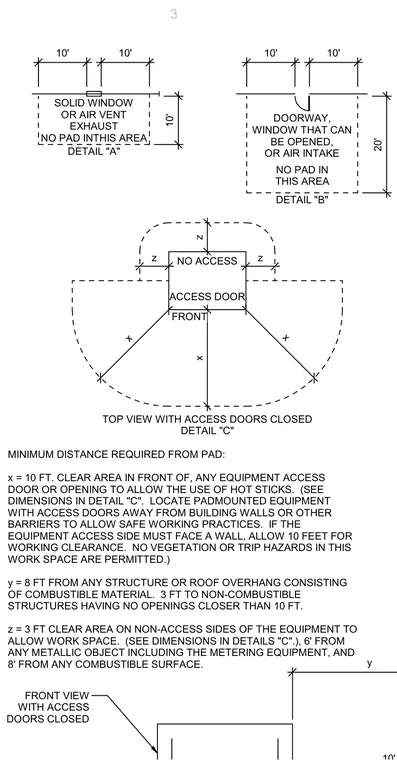

Padmounted equipment clearance diagrams define the required working space and minimum separation distances from building openings, walls, and property elements to ensure safe operational access. A minimum distance of 10 feet is required in front of equipment access doors to accommodate hot sticks and prevent obstructions from vegetation or trip hazards. Non-access sides require a 3-foot clear area, while separations from combustible structures or roof overhangs must be at least 8 feet. Additional clearance zones are established for solid windows, air vents, doorways, and metallic objects such as metering equipment.
