A recessed troffer lay-in ceiling light fixture is supported independently of the ceiling support system using number twelve gauge wire hangers at each corner typically. Fixture clamps are provided with one per side per fixture to secure the assembly to the grid. The fixture integrates into the lay-in ceiling plane.

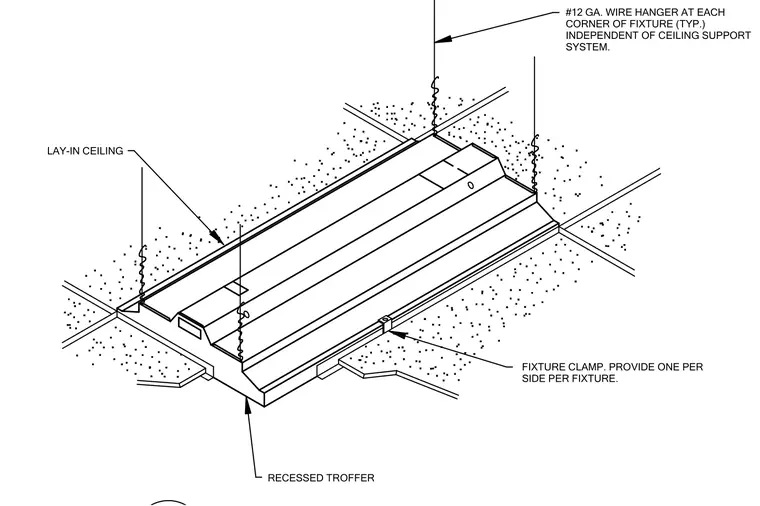

RECESSED TROFFER LAY-IN CEILING FIXTURE CLAMP. PROVIDE ONE PER SIDE PER FIXTURE. #12 GA. WIRE HANGER AT EACH CORNER OF FIXTURE (TYP.) INDEPENDENT OF CEILING SUPPORT SYSTEM.
