E-BV8AH — Motor Control Center Feeder Riser Diagram

Electrical · E-BV8AH

Motor Control Center Feeder Riser Diagram

Elements

About this detail

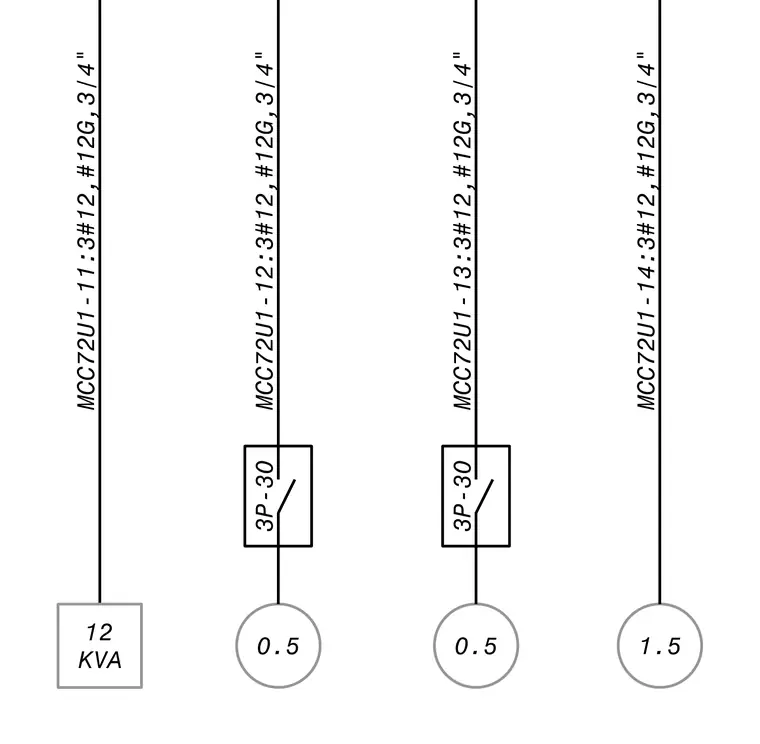

Electrical riser diagram depicting feeder circuits originating from a motor control center designated as MCC72U1. Circuits include specified conductor configurations utilizing three number twelve conductors with a ground and conduit size. Select circuits incorporate three-pole thirty-ampere disconnect switches along with associated load ratings.

CD MCC72U1-14:3#12,#12G,3/4 Ol MCC72U1-13:3#12,#12G,3/4 3P-30 o CD MCC72U1-12:3#12,#12G,3/4 3P-30 o £ $ -*■ S' DO MCC72U1-11:3#12,#12G,3/4

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
