An exterior wall mounted video surveillance camera is installed with a four-inch square box and a two-gang ring. A three-quarter-inch conduit and data cabling run from the box to the nearest data room or cable tray. The installation includes Category 6A cable and a CommScope Category 6A U/UTP plenum cord with an RJ45 connector, part number CCA-CAT6A-BK-2FT. Requirements for the surveillance camera refer to the video surveillance camera and equipment schedule.

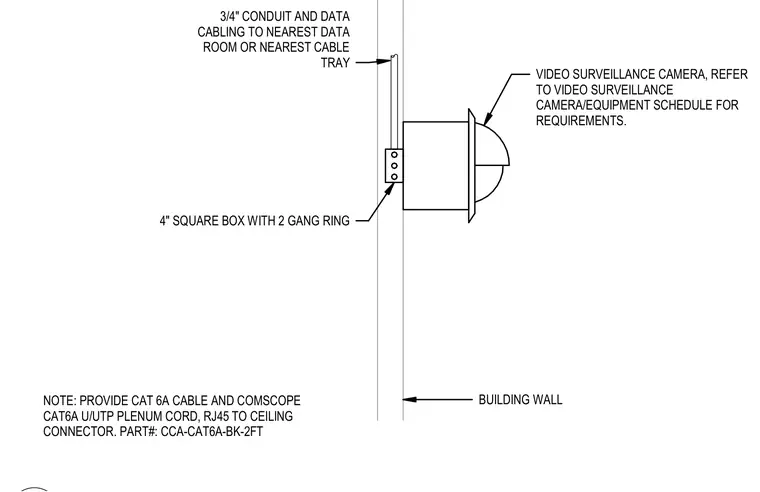

BUILDING WALL VIDEO SURVEILLANCE CAMERA, REFER TO VIDEO SURVEILLANCE CAMERA/EQUIPMENT SCHEDULE FOR REQUIREMENTS. 4" SQUARE BOX WITH 2 GANG RING 3/4" CONDUIT AND DATA CABLING TO NEAREST DATA ROOM OR NEAREST CABLE TRAY NOTE: PROVIDE CAT 6A CABLE AND COMSCOPE CAT6A U/UTP PLENUM CORD, RJ45 TO CEILING CONNECTOR. PART#: CCA-CAT6A-BK-2FT
