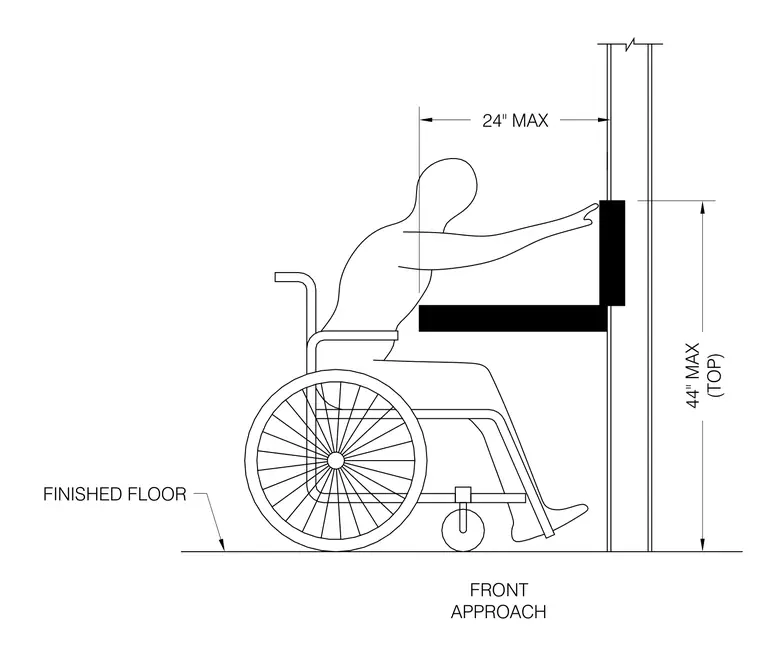

An accessibility diagram showing front approach reach ranges with a maximum height of forty-four inches to the top of the operable control and a maximum reach depth of twenty-four inches from the wall, measured from the finished floor.
