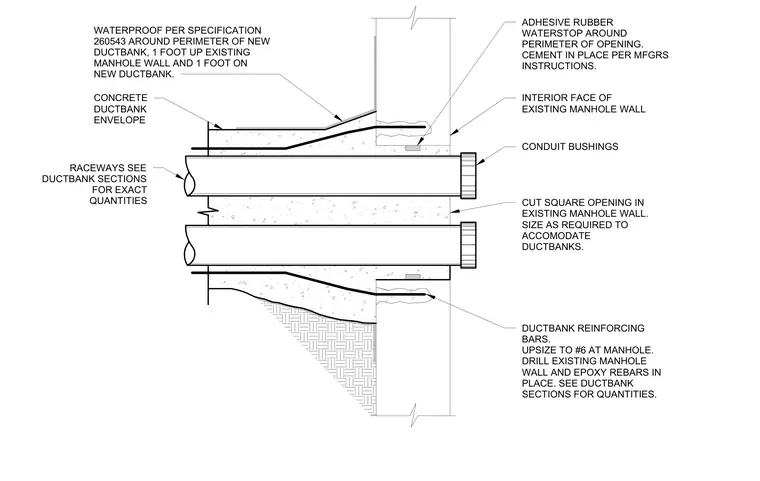

A square opening is cut into the existing concrete manhole wall and sized to accommodate the incoming concrete ductbank envelope containing raceways and conduit bushings. Ductbank reinforcing bars are upsized to number six bars, drilled and epoxied into the existing manhole wall. An adhesive rubber waterstop is cemented around the perimeter of the opening. Waterproofing is applied around the perimeter of the new ductbank extending one foot up the existing manhole wall and one foot onto the new ductbank.
RACEWAYS SEE DUCTBANK SECTIONS FOR EXACT QUANTITIES CONCRETE DUCTBANK ENVELOPE ADHESIVE RUBBER WATERSTOP AROUND PERIMETER OF OPENING. CEMENT IN PLACE PER MFGRS INSTRUCTIONS. INTERIOR FACE OF EXISTING MANHOLE WALL CONDUIT BUSHINGS CUT SQUARE OPENING IN EXISTING MANHOLE WALL. SIZE AS REQUIRED TO ACCOMODATE DUCTBANKS. DUCTBANK REINFORCING BARS. UPSIZE TO #6 AT MANHOLE. DRILL EXISTING MANHOLE WALL AND EPOXY REBARS IN PLACE. SEE DUCTBANK SECTIONS FOR QUANTITIES. WATERPROOF PER SPECIFICATION 260543 AROUND PERIMETER OF NEW DUCTBANK, 1 FOOT UP EXISTING MANHOLE WALL AND 1 FOOT ON NEW DUCTBANK.
