Cable Lashing

About this detail

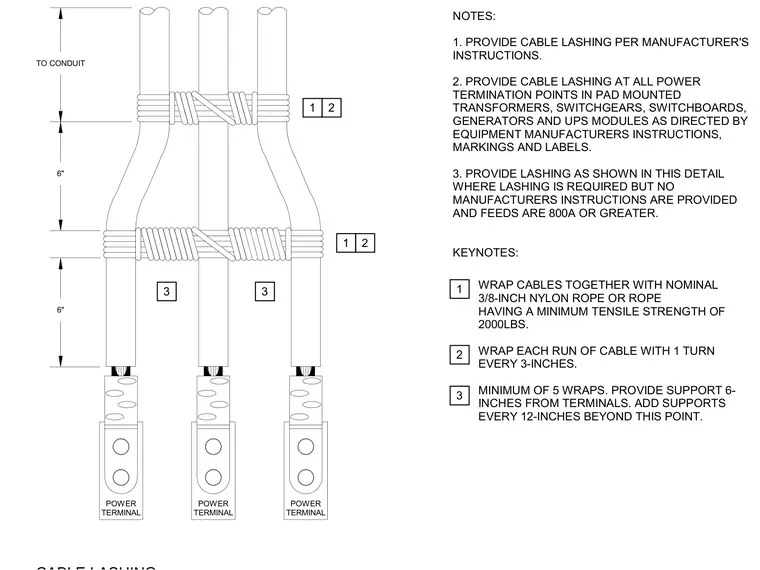

Cables are lashed together using a nominal three-eighths-inch nylon rope or a rope with a minimum tensile strength of two thousand pounds. Each run of cable is wrapped with one turn every three inches, requiring a minimum of five wraps per grouping. Initial support is provided six inches from the power terminals, with additional supports added every twelve inches beyond that point.
