E-BN3BK — Distribution Panel 'C2D2'

Electrical · E-BN3BK

Distribution Panel 'C2D2'

About this detail

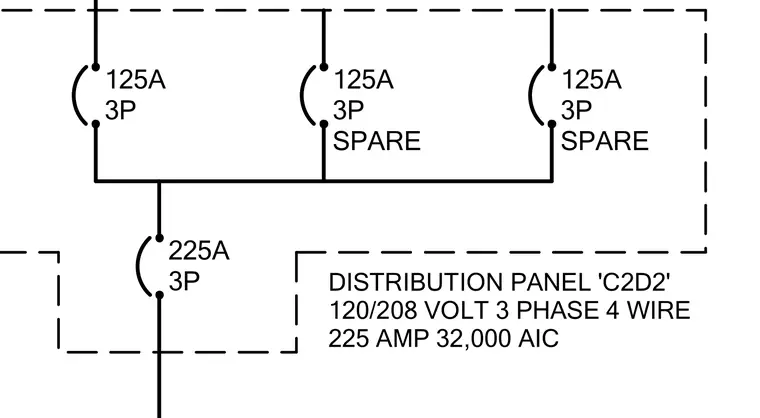

Distribution panel C2D2 is rated for 120/208 volts, 3 phase, 4 wire service at 225 amperes with a 32,000 AIC fault current rating. The main feed is protected by a 225-ampere, 3-pole circuit breaker. Branch circuits originate from the bus through a 125-ampere, 3-pole breaker and two spare 125-ampere, 3-pole breakers.

DISTRIBUTION PANEL 'C2D2' 120/208 VOLT 3 PHASE 4 WIRE 225 AMP 32,000 AIC 125A 3P 225A 3P 125A 3P SPARE 125A 3P SPARE

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
