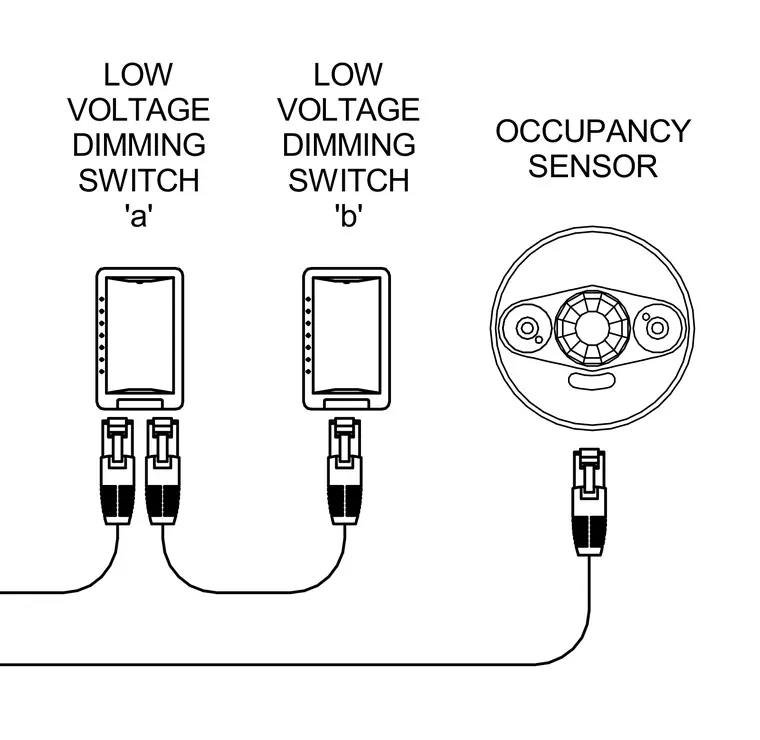

Two low voltage dimming switches labeled 'a' and 'b' connect alongside an occupancy sensor using modular data cables. Each device receives cabling connected to its underside port.
