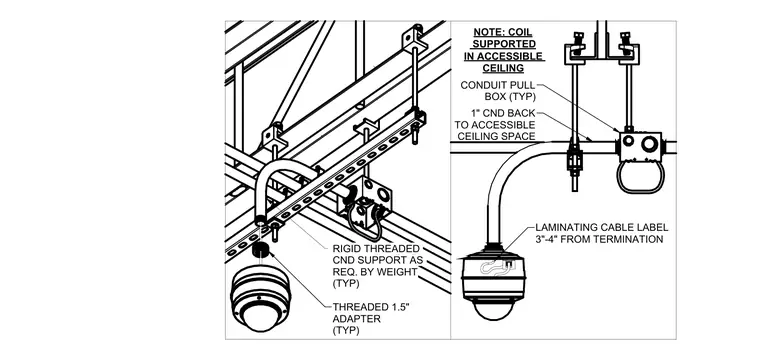

A surface-mounted security camera is suspended from an accessible ceiling space using a threaded 1.5-inch adapter and a rigid threaded conduit support sized as required by weight. A 1-inch conduit routes back to the accessible ceiling space through a typical conduit pull box. A cable label is laminated three to four inches from the termination point. Extra cable coil is supported within the accessible ceiling space above.
CONDUIT PULL BOX (TYP) LAMINATING CABLE LABEL 3"-4" FROM TERMINATION RIGID THREADED CND SUPPORT AS REQ. BY WEIGHT (TYP) 1" CND BACK TO ACCESSIBLE CEILING SPACE NOTE: COIL SUPPORTED IN ACCESSIBLE CEILING THREADED 1.5" ADAPTER (TYP)
