Electrical · E-BHTS6

Wireless Sensor and Keypad Layout Details

Elements

About this detail

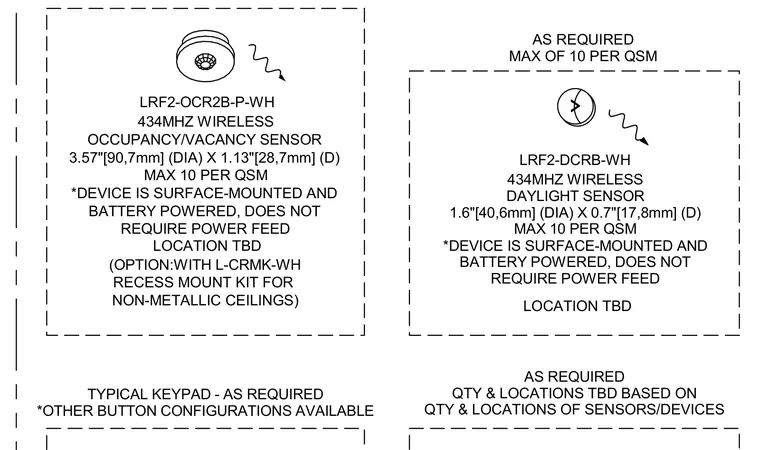

The diagram details surface-mounted, battery-powered 434MHz wireless devices including an occupancy-vacancy sensor measuring 3.57 inches in diameter by 1.13 inches deep, a daylight sensor measuring 1.6 inches in diameter by 0.7 inches deep, and typical keypads with customizable button configurations. The occupancy sensor includes an optional recess mount kit for non-metallic ceilings. All devices are limited to a maximum of ten units per Quantum Sensor Module, with exact locations to be determined based on system layout.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
