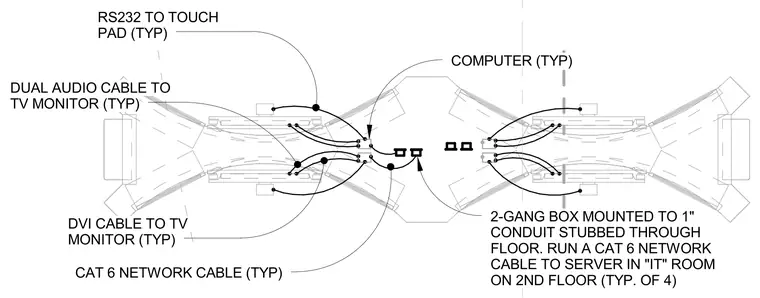

A two-gang box is mounted to a one-inch conduit stubbed through the floor for low voltage data and audio-visual connections. Category 6 network cables run from the floor boxes to the server located in the information technology room on the second floor, typical of four locations. RS232 cables connect to typical touch pads. Dual audio cables and Digital Visual Interface cables connect to typical television monitors alongside computer data connections.
2-GANG BOX MOUNTED TO 1" CONDUIT STUBBED THROUGH FLOOR. RUN A CAT 6 NETWORK CABLE TO SERVER IN "IT" ROOM ON 2ND FLOOR (TYP. OF 4) COMPUTER (TYP) RS232 TO TOUCH PAD (TYP) DUAL AUDIO CABLE TO TV MONITOR (TYP) DVI CABLE TO TV MONITOR (TYP) CAT 6 NETWORK CABLE (TYP)
