Electrical · E-BH7ZR

Conduit Trench Detail

Materials

Elements

About this detail

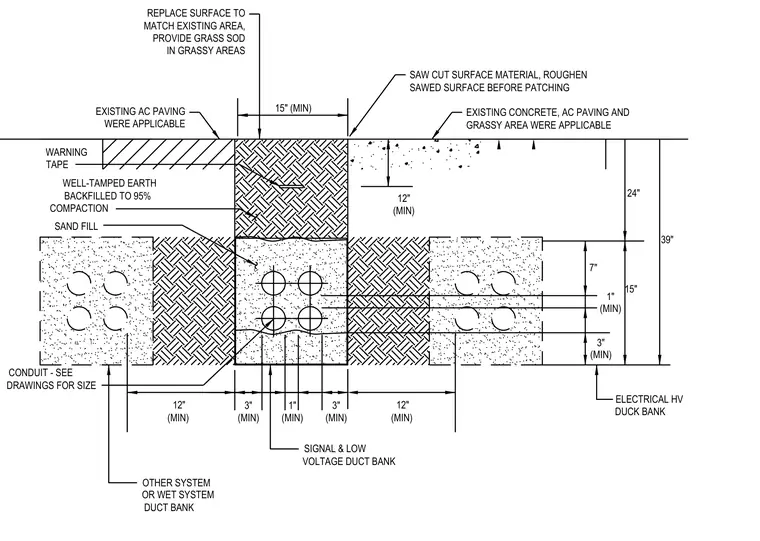

An underground utility trench houses an electrical high voltage duct bank or signal and low voltage duct bank encased in concrete with a sand fill surround. The trench is excavated to a minimum depth of thirty-nine inches below grade, with a warning tape placed in the backfill twenty-four inches below the surface where applicable. Backfill consists of well-tamped earth compacted to ninety-five percent. Surface restoration requires replacing asphaltic concrete paving, existing concrete, or providing grass sod to match the existing area, with saw-cut edges roughened before patching.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
