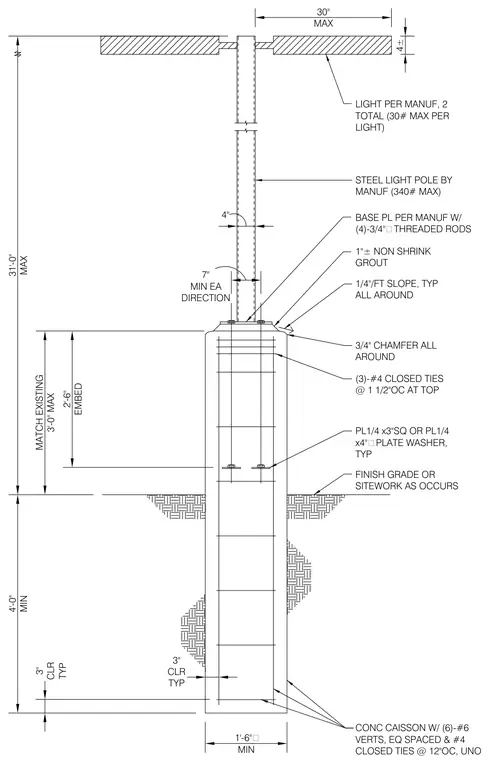

A structural concrete caisson foundation supports a steel light pole with a maximum weight of 340 pounds and two light fixtures up to 30 pounds each. The 18-inch minimum diameter concrete caisson is reinforced with six number 6 vertical bars spaced equally and number 4 closed ties at 12 inches on center. Three number 4 closed ties at 1 1/2 inches on center are provided at the top of the caisson. Four 3/4-inch diameter threaded rods embed 2 feet 6 inches into the concrete with 1/4-inch by 3-inch square or 1/4-inch by 4-inch round plate washers typically. A 1-inch thick non-shrink grout layer sits beneath the manufacturer's base plate. The top of the concrete caisson features a 1/4 inch per foot slope all around and a 3/4-inch chamfer at the edge.
31'-0" MAX 4'-0" MIN 7" MIN EA DIRECTION 1'-6" ∅ MIN 3" CLR TYP 30" MAX 4± 4" 3" CLR TYP 2'-6" EMBED MATCH EXISTING 3'-0" MAX CONC CAISSON W/ (6)-#6 VERTS, EQ SPACED & #4 CLOSED TIES @ 12"OC, UNO FINISH GRADE OR SITEWORK AS OCCURS PL1/4 x3"SQ OR PL1/4 x4" ∅ PLATE WASHER, TYP (3)-#4 CLOSED TIES @ 1 1/2"OC AT TOP 1/4"/FT SLOPE, TYP ALL AROUND 1"± NON SHRINK GROUT BASE PL PER MANUF W/ (4)-3/4" ∅ THREADED RODS STEEL LIGHT POLE BY MANUF (340# MAX) LIGHT PER MANUF, 2 TOTAL (30# MAX PER LIGHT) 3/4" CHAMFER ALL AROUND
