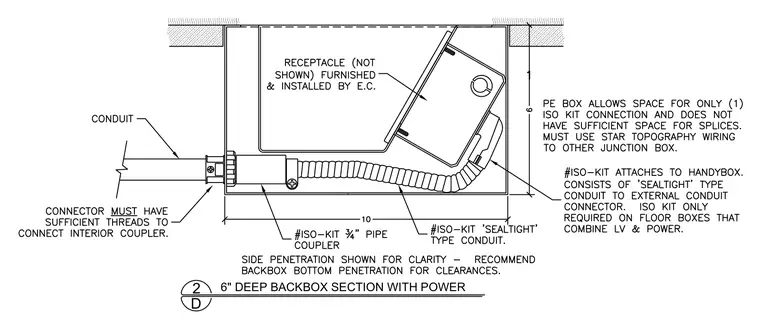

This six-inch deep backbox section accommodates an angled internal receptacle and an isolation kit connection for combined power and low-voltage applications. An exterior conduit connects to a three-quarter-inch pipe coupler via a connector requiring sufficient threads for the interior coupler. The isolation kit utilizes a liquid-tight type flexible conduit attaching to a handybox, restricting the enclosure to a single isolation kit connection without splice space. Side penetration is shown for clarity, though bottom penetration is recommended for enhanced clearances. Star topography wiring to a separate junction box must be implemented.
