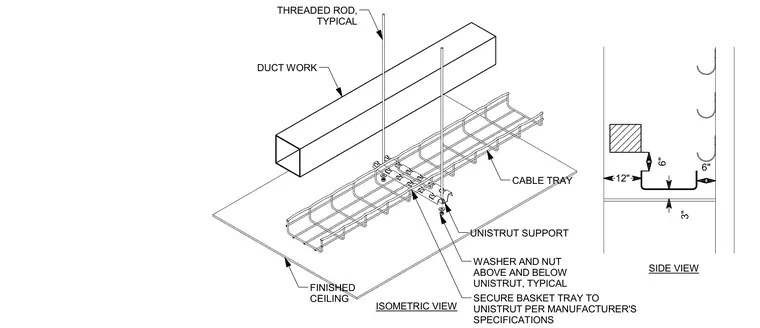

Suspended wire mesh cable tray routed past parallel ductwork using a Unistrut support and threaded rods. The cable tray is secured to the Unistrut support per the manufacturer's specifications using washers and nuts positioned above and below the channel. The assembly is hung from overhead structure using threaded rods extending down past adjacent ductwork and above the finished ceiling.
3" 6" 12" 6" ISOMETRIC VIEW SIDE VIEW CABLE TRAY UNISTRUT SUPPORT THREADED ROD, TYPICAL DUCT WORK FINISHED CEILING WASHER AND NUT ABOVE AND BELOW UNISTRUT, TYPICAL SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS
