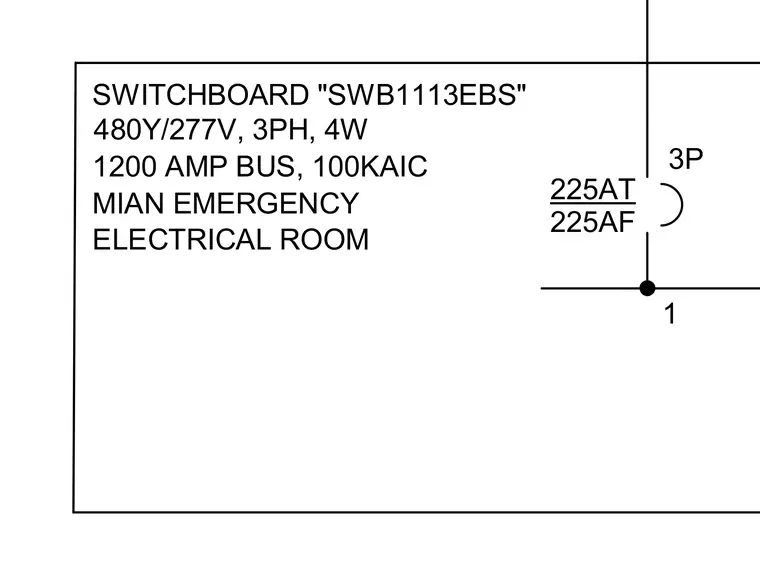

This diagram details emergency switchboard SWB1113EBS rated for 480Y/277 volts, three-phase, four-wire service with a 1200 amp bus and 100 kAIC fault current rating. Located in the main emergency electrical room, the distribution equipment includes a 225 amp trip and 225 amp frame three-pole breaker branch connection designated as circuit one.
SWITCHBOARD "SWB1113EBS" 480Y/277V, 3PH, 4W 1200 AMP BUS, 100KAIC MIAN EMERGENCY ELECTRICAL ROOM 225AT 225AF 3P 1
