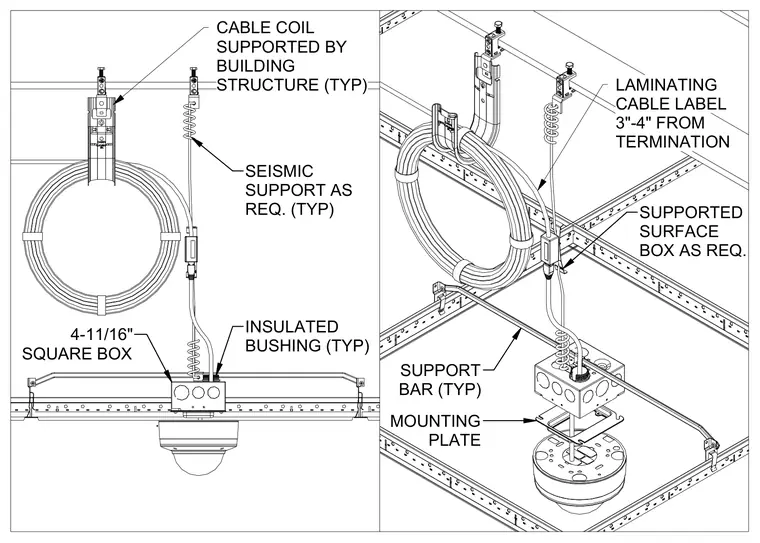

A security camera is mounted to a four-and-eleven-sixteenths-inch square box supported by a typical T-bar ceiling grid and support bar. The assembly includes a mounting plate at the camera connection, insulated bushings, and a cable coil supported by the building structure with seismic supports as required. A laminating cable label is positioned three to four inches from the termination point.
SUPPORT BAR (TYP) 4-11/16" SQUARE BOX MOUNTING PLATE LAMINATING CABLE LABEL 3"-4" FROM TERMINATION CABLE COIL SUPPORTED BY BUILDING STRUCTURE (TYP) SEISMIC SUPPORT AS REQ. (TYP) INSULATED BUSHING (TYP) SUPPORTED SURFACE BOX AS REQ.
