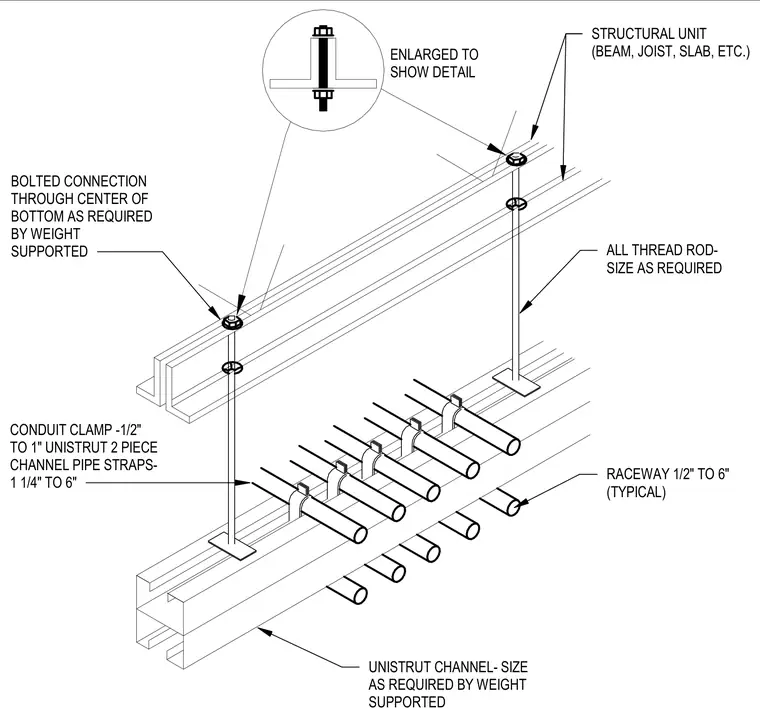

A structural unit such as a beam, joist, or slab supports all-thread rods sized as required for the weight of the raceway system. The threaded rods suspend a bottom Unistrut channel via bolted connections through the center of the bottom as required by the supported weight. Raceways ranging from 1/2 inch to 6 inches are secured to the Unistrut channel using conduit clamps for 1/2 inch to 1 inch sizes and 2-piece channel pipe straps for 1/4 inch to 6 inch sizes.
ALL THREAD ROD- SIZE AS REQUIRED RACEWAY 1/2" TO 6" (TYPICAL) UNISTRUT CHANNEL- SIZE AS REQUIRED BY WEIGHT SUPPORTED STRUCTURAL UNIT (BEAM, JOIST, SLAB, ETC.) CONDUIT CLAMP -1/2" TO 1" UNISTRUT 2 PIECE CHANNEL PIPE STRAPS- 1 1/4" TO 6" BOLTED CONNECTION THROUGH CENTER OF BOTTOM AS REQUIRED BY WEIGHT SUPPORTED ENLARGED TO SHOW DETAIL
