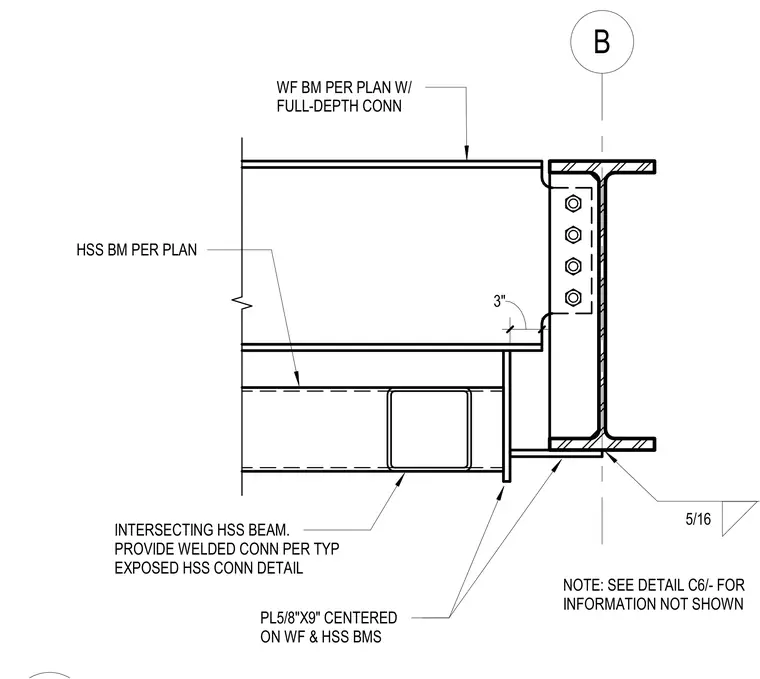

A wide flange beam connects to an intersecting hollow structural section beam using a five-eighths-inch by nine-inch plate centered on both members. A full-depth connection secures the wide flange beam per plan. The hollow structural section beam uses a welded connection per typical exposed hollow structural section connection details with a five-sixteenths-inch fillet weld. Refer to detail C6 for additional information not shown.
B 3" WF BM PER PLAN W/ FULL-DEPTH CONN HSS BM PER PLAN PL5/8"X9" CENTERED ON WF & HSS BMS 5/16 INTERSECTING HSS BEAM. PROVIDE WELDED CONN PER TYP EXPOSED HSS CONN DETAIL NOTE: SEE DETAIL C6/- FOR INFORMATION NOT SHOWN
