A recessed can light fixture is integrated into a lay-in tile ceiling using a fixture mounting bracket. Number twelve steel wires secure the ceiling grid and fixture assembly to the structure above. The lighting fixture must be centered within the ceiling tile and coordinated with mechanical ductwork and equipment.

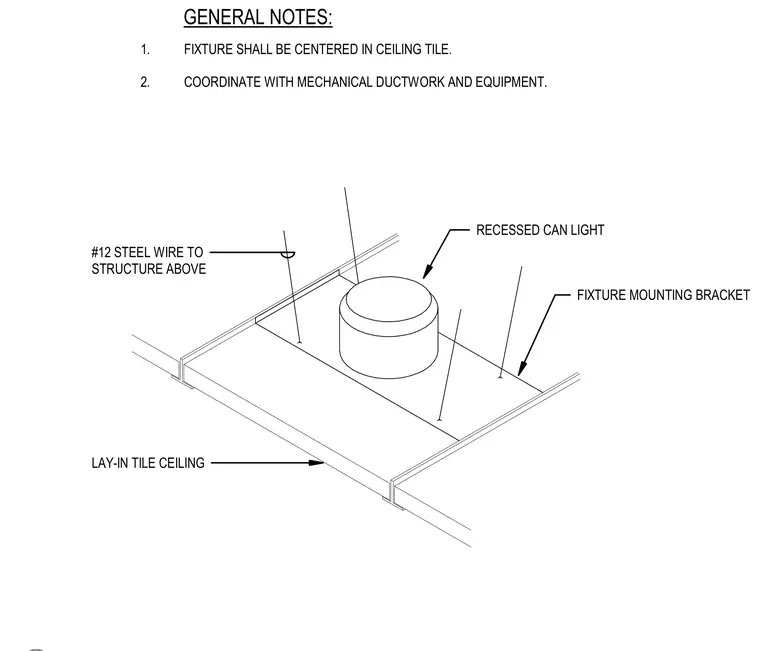

FIXTURE MOUNTING BRACKET LAY-IN TILE CEILING RECESSED CAN LIGHT #12 STEEL WIRE TO STRUCTURE ABOVE GENERAL NOTES: 1. FIXTURE SHALL BE CENTERED IN CEILING TILE. 2. COORDINATE WITH MECHANICAL DUCTWORK AND EQUIPMENT.
