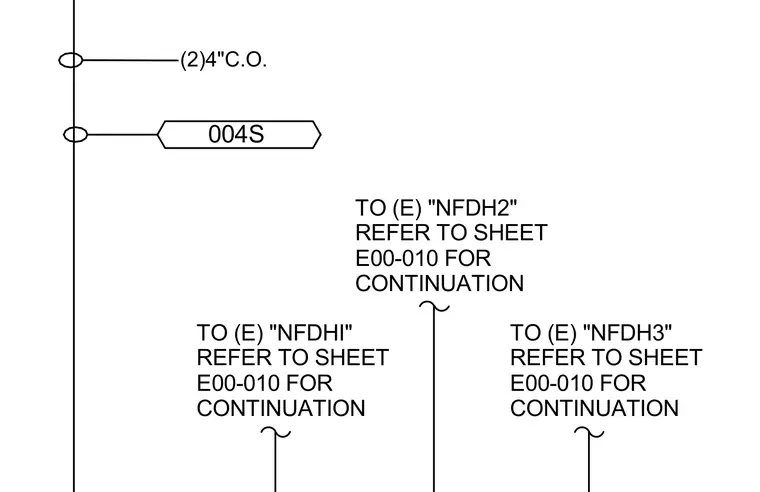

Two four-inch conduits run vertically and continue to existing panels NFDH1, NFDH2, and NFDH3 on sheet E00-010. Each run is tagged with routing notes and sheet continuation references for coordination.
004S TO (E) "NFDHI" REFER TO SHEET E00-010 FOR CONTINUATION TO (E) "NFDH2" REFER TO SHEET E00-010 FOR CONTINUATION TO (E) "NFDH3" REFER TO SHEET E00-010 FOR CONTINUATION (2)4"C.O.
