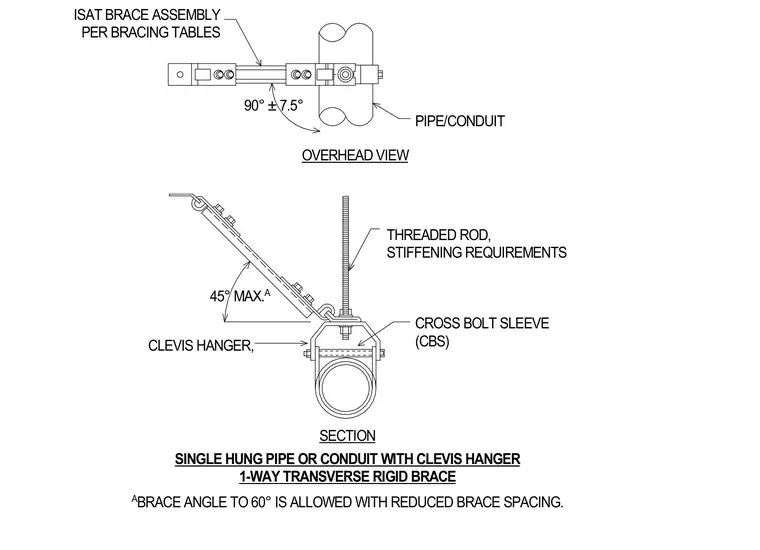

A single hung pipe or conduit is suspended using a clevis hanger connected to a vertical threaded rod. A cross bolt sleeve (CBS) secures the hanger assembly. A 1-way transverse rigid brace assembly ties into the hanger at an angle of 45 degrees maximum, with brace angles up to 60 degrees permitted when utilizing reduced brace spacing.
CROSS BOLT SLEEVE (CBS) CLEVIS HANGER, 45° MAX. A SECTION THREADED ROD, STIFFENING REQUIREMENTS OVERHEAD VIEW PIPE/CONDUIT 90° ± 7.5° ISAT BRACE ASSEMBLY PER BRACING TABLES SINGLE HUNG PIPE OR CONDUIT WITH CLEVIS HANGER 1-WAY TRANSVERSE RIGID BRACE A BRACE ANGLE TO 60° IS ALLOWED WITH REDUCED BRACE SPACING.
