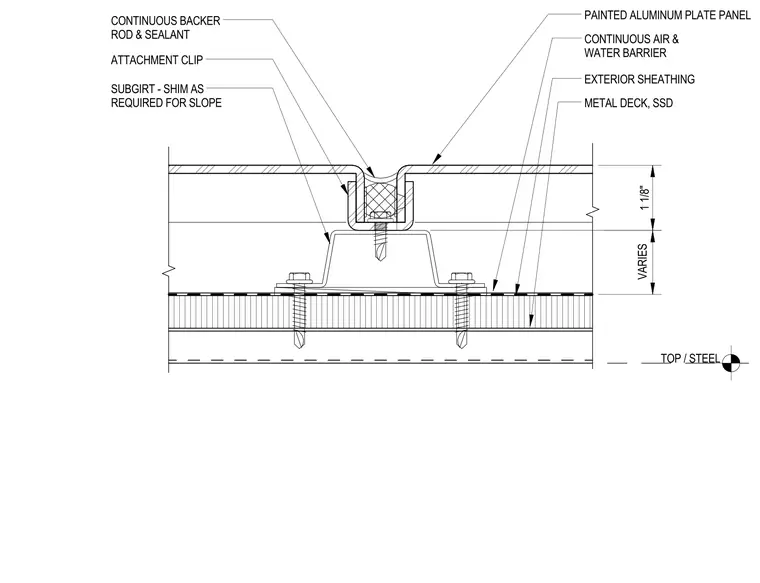

This typical panel joint detail connects painted aluminum plate panels over a continuous metal deck and exterior sheathing assembly. A hat-shaped subgirt is fastened through the air and water barrier layers, with shims provided as required for slope adjustment. The joint incorporates a continuous backer rod and sealant within the recessed aluminum panel profile, anchored by attachment clips and mechanical fasteners spanning a variable height of one and one-eighth inches.
ATTACHMENT CLIP CONTINUOUS BACKER ROD & SEALANT PAINTED ALUMINUM PLATE PANEL SUBGIRT - SHIM AS REQUIRED FOR SLOPE TOP / STEEL VARIES 1 1/8" 0' - 2 3/4" 0' - 2 13/16" CONTINUOUS AIR & WATER BARRIER EXTERIOR SHEATHING METAL DECK, SSD
