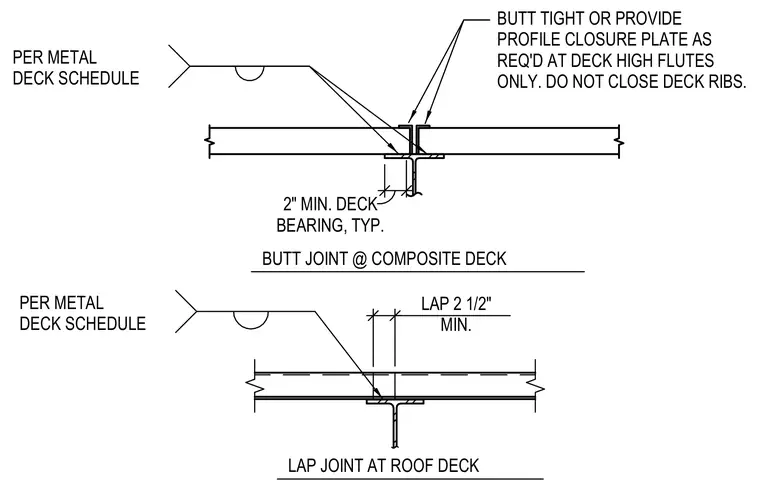

The composite metal deck bears on a structural steel support with a minimum of two inches of bearing length. Deck panels meet in a butt joint that is tightly fitted or provided with a profile closure plate as required at deck high flutes only. Deck ribs remain unclosed per the installation notes. Overlapping roof deck joints require a minimum lap of two and one-half inches. Fastener spacing and attachment methods comply with the metal deck schedule.
2" MIN. DECK BEARING, TYP. LAP 2 1/2" MIN. BUTT TIGHT OR PROVIDE PROFILE CLOSURE PLATE AS REQ'D AT DECK HIGH FLUTES ONLY. DO NOT CLOSE DECK RIBS. BUTT JOINT @ COMPOSITE DECK PER METAL DECK SCHEDULE LAP JOINT AT ROOF DECK PER METAL DECK SCHEDULE
