The service grounding system incorporates copper conductors sized per NEC requirements for building service and fire pump service. A main water service pipe utilizes a ground jumper clamp around the water meter, supplemented by a connection to building steel. Two minimum 3/4-inch by 20-foot copperweld ground rods maintain a 20-foot minimum separation connected via a #6 AWG copper wire. A ground ring per NEC Article 250-52(A)(4) utilizes #2 AWG copper conductor.

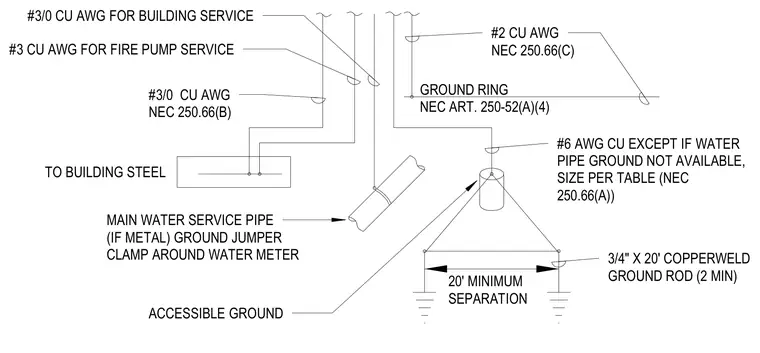

#6 AWG CU EXCEPT IF WATER PIPE GROUND NOT AVAILABLE, SIZE PER TABLE (NEC 250.66(A)) 20' MINIMUM SEPARATION 3/4" X 20' COPPERWELD GROUND ROD (2 MIN) GROUND RING NEC ART. 250-52(A)(4) #2 CU AWG NEC 250.66(C) #3/0 CU AWG NEC 250.66(B) MAIN WATER SERVICE PIPE (IF METAL) GROUND JUMPER CLAMP AROUND WATER METER TO BUILDING STEEL ACCESSIBLE GROUND #3/0 CU AWG FOR BUILDING SERVICE #3 CU AWG FOR FIRE PUMP SERVICE
