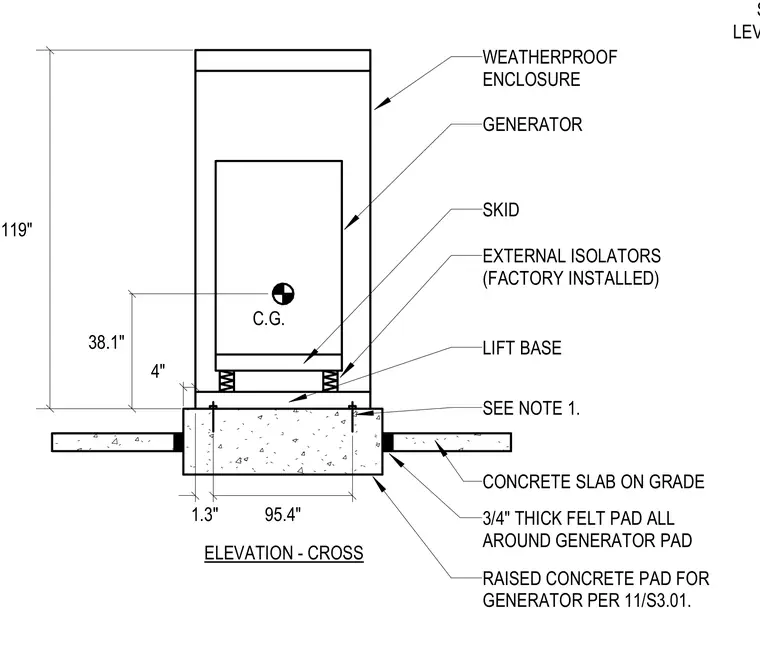

An exterior generator unit rests on a skid with factory-installed external isolators positioned above a generator lift base. The entire assembly bears on a raised concrete pad measuring ninety-five and four-tenths inches wide with a four-inch height, detailed per drawing eleven on sheet S3.01. A three-quarter-inch thick felt pad wraps entirely around the perimeter of the generator pad, separating it from the surrounding concrete slab on grade. The weatherproof enclosure measures one hundred nineteen inches in total height, with the center of gravity located thirty-eight and one-tenth inches above the base.
ELEVATION - CROSS C.G. SKID EXTERNAL ISOLATORS (FACTORY INSTALLED) WEATHERPROOF ENCLOSURE GENERATOR LIFT BASE SEE NOTE 1. CONCRETE SLAB ON GRADE 3/4" THICK FELT PAD ALL AROUND GENERATOR PAD RAISED CONCRETE PAD FOR GENERATOR PER 11/S3.01. 119" 38.1" 4" STEEL, ACOUSTIC, LEVEL 2 ENCLOSURE. 95.4" 1.3"
