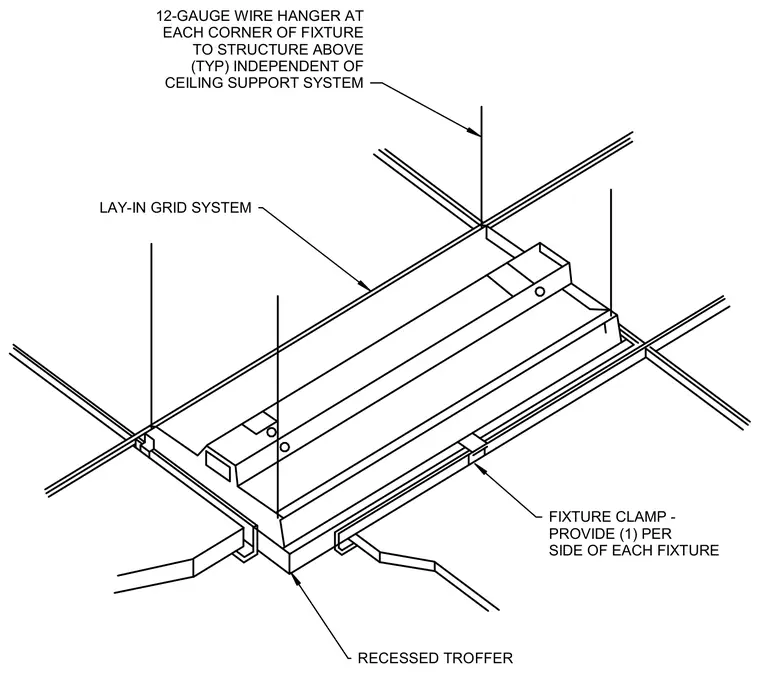

A recessed troffer light fixture sits within a lay-in grid system and relies on four 12-gauge wire hangers attached to each corner for independent support from the structure above. One fixture clamp is provided on each side of the fixture to secure the housing to the ceiling grid framework.
LAY-IN GRID SYSTEM 12-GAUGE WIRE HANGER AT EACH CORNER OF FIXTURE TO STRUCTURE ABOVE (TYP) INDEPENDENT OF CEILING SUPPORT SYSTEM RECESSED TROFFER FIXTURE CLAMP - PROVIDE (1) PER SIDE OF EACH FIXTURE
