Three-inch diameter galvanized steel pipes serve as vertical supports anchored to a concrete apron using galvanized steel surface mount floor flanges with two set screws and bolts. Horizontal framing members secure electrical disconnects and devices, with fastening hardware provided for equipment and conduit support. Expansion fittings are included and conduit size and quantity are coordinated with design requirements. Vertical members may be extended and additional horizontal members added to support conduit, topped with end caps.

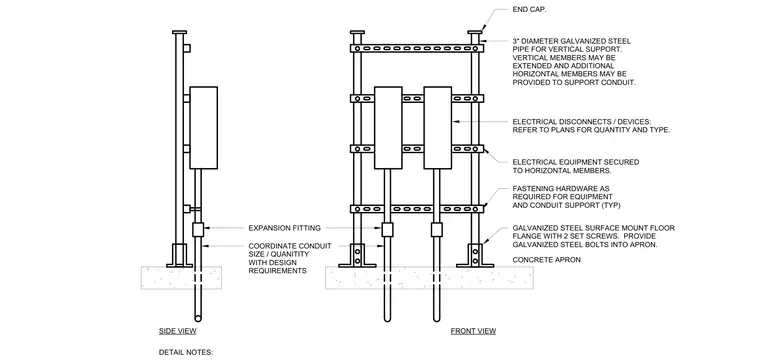

GALVANIZED STEEL SURFACE MOUNT FLOOR FLANGE WITH 2 SET SCREWS. PROVIDE GALVANIZED STEEL BOLTS INTO APRON. CONCRETE APRON ELECTRICAL EQUIPMENT SECURED TO HORIZONTAL MEMBERS. 3" DIAMETER GALVANIZED STEEL PIPE FOR VERTICAL SUPPORT. VERTICAL MEMBERS MAY BE EXTENDED AND ADDITIONAL HORIZONTAL MEMBERS MAY BE PROVIDED TO SUPPORT CONDUIT. FASTENING HARDWARE AS REQUIRED FOR EQUIPMENT AND CONDUIT SUPPORT (TYP) SIDE VIEW FRONT VIEW END CAP. DETAIL NOTES: EXPANSION FITTING COORDINATE CONDUIT SIZE / QUANITITY WITH DESIGN REQUIREMENTS ELECTRICAL DISCONNECTS / DEVICES: REFER TO PLANS FOR QUANTITY AND TYPE.
