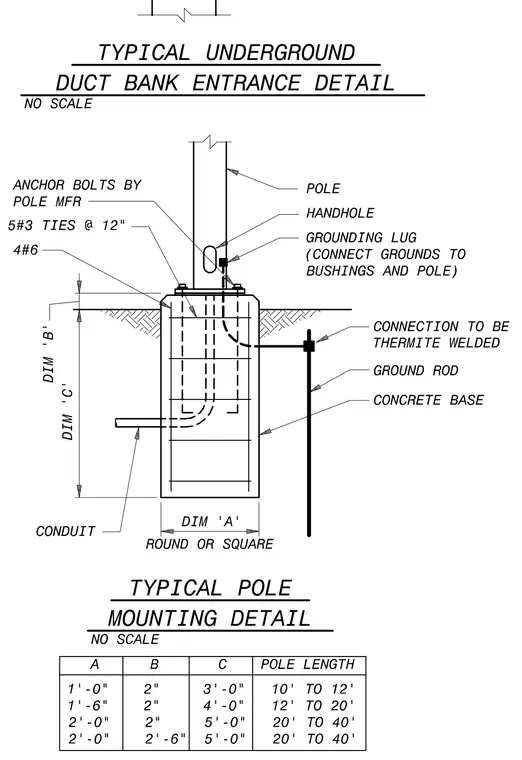

An electrical pole mounts to a concrete base using anchor bolts provided by the pole manufacturer. The concrete base incorporates four number 6 vertical reinforcing bars and number 3 ties spaced at twelve inches on center. A conduit enters the side of the foundation base for underground utility routing. A grounding lug on the pole connects grounding wires to bushings and the pole itself. A ground rod connects to the foundation through a thermite welded connection.
TYPICAL UNDERGROUND DUCT BANK ENTRANCE DETAIL NO SCALE ANCHOR BOLTS BY POLE MFR - POLE HANDHOLE GROUNDING LUG (CONNECT GROUNDS TO BUSHINGS AND POLE) 5#3 TIES @ 12 4#6 TTt I l 77- 00 00 C! CONNECTION TO BE THERMITE WELDED CQ I GROUND ROD *—i Q I O 1 4 CONCRETE BASE L// -I C / H Q 1 DIM 'A CONDUIT ROUND OR SQUARE TYPICAL POLE MOUNTING DETAIL NO SCALE C POLE LENGTH A B 1 ' -0 1 '-6 3' -0" 4' -0 " 2 10' TO 12 12' TO 20 20' TO 40 20' TO 40 2 2' -0" 2' -0" 5' -0 5' -0 2 2 1 -6
