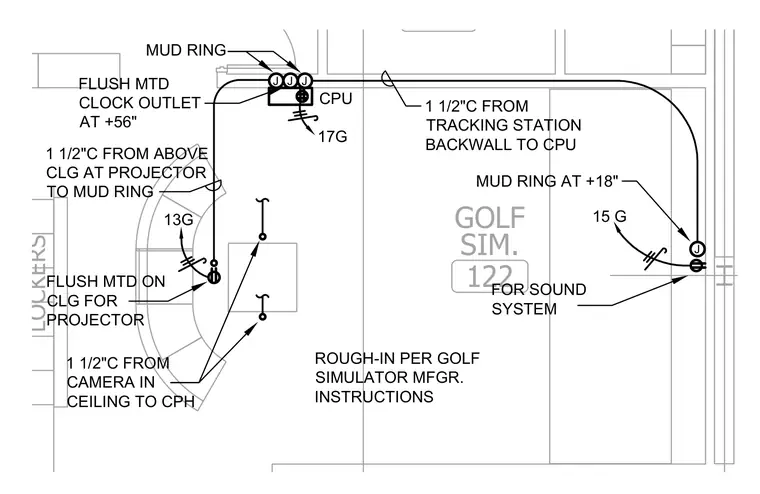

A flush-mounted mud ring supports a clock outlet at plus fifty-six inches, with a one-and-a-half-inch conduit running from above the ceiling at the projector to a flush-mounted ceiling mud ring for the projector. A separate one-and-a-half-inch conduit runs from the ceiling camera to the central processing hub, and another one-and-a-half-inch conduit connects the tracking station backwall to the CPU. A sound system mud ring is positioned at plus eighteen inches, and all rough-in work follows the golf simulator manufacturer instructions.
122 SIM. GOLF LOCKERS J J J CPU J 15 G 17G 13G ROUGH-IN PER GOLF SIMULATOR MFGR. INSTRUCTIONS MUD RING FLUSH MTD CLOCK OUTLET AT +56" 1 1/2"C FROM ABOVE CLG AT PROJECTOR TO MUD RING FLUSH MTD ON CLG FOR PROJECTOR 1 1/2"C FROM CAMERA IN CEILING TO CPH 1 1/2"C FROM TRACKING STATION BACKWALL TO CPU MUD RING AT +18" FOR SOUND SYSTEM
