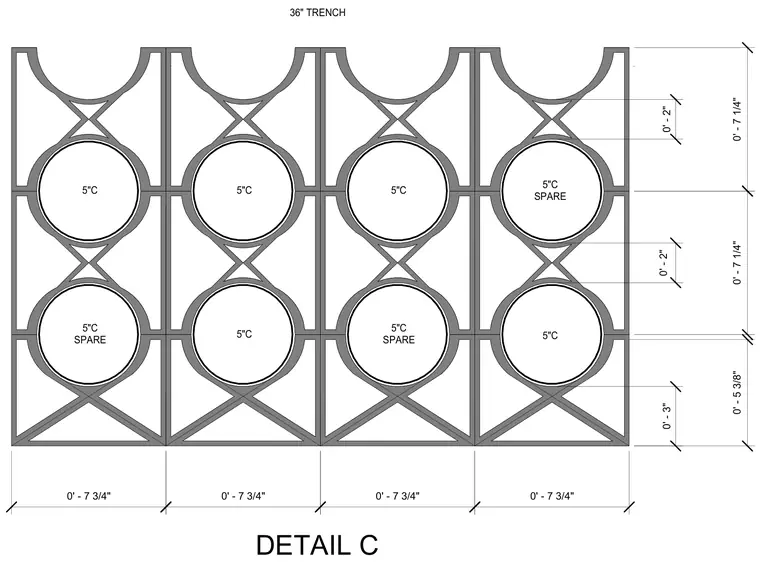

An underground electrical trench assembly containing five-inch conduits and spare conduits arranged in a structural layout. Dimensions specify vertical and horizontal spacing within the thirty-six-inch trench profile.
0' - 7 3/4" 0' - 3" 0' - 2" 0' - 7 1/4" 0' - 7 1/4" 0' - 2" 0' - 5 3/8" 0' - 7 3/4" 0' - 7 3/4" 0' - 7 3/4" DETAIL C 5"C SPARE 5"C 5"C 5"C SPARE 5"C 5"C SPARE 5"C 5"C 36" TRENCH
