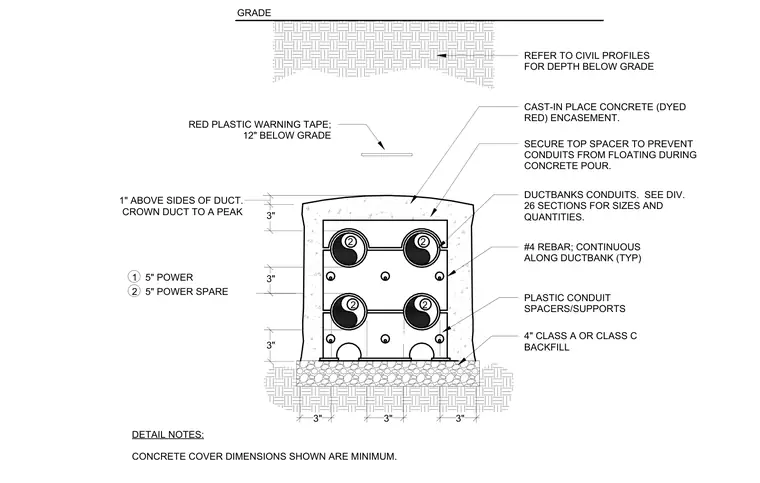

An underground electrical ductbank is encased in cast-in-place concrete dyed red and set upon a four-inch Class A or Class C backfill layer. A two-by-two arrangement of five-inch power and spare conduits is supported by plastic conduit spacers, with the top spacer secured to prevent floating during the concrete pour. Continuous number four rebar runs along the ductbank while maintaining minimum three-inch concrete cover dimensions and a crowned top profile. Red plastic warning tape is positioned twelve inches below grade directly above the encasement.
3" 3" 3" 1" ABOVE SIDES OF DUCT. CROWN DUCT TO A PEAK SECURE TOP SPACER TO PREVENT CONDUITS FROM FLOATING DURING CONCRETE POUR. DUCTBANKS CONDUITS. SEE DIV. 26 SECTIONS FOR SIZES AND QUANTITIES. #4 REBAR; CONTINUOUS ALONG DUCTBANK (TYP) 4" CLASS A OR CLASS C BACKFILL PLASTIC CONDUIT SPACERS/SUPPORTS DETAIL NOTES: CONCRETE COVER DIMENSIONS SHOWN ARE MINIMUM. RED PLASTIC WARNING TAPE; 12" BELOW GRADE 3" 3" 2 2 2 2 3" 1 5" POWER 2 5" POWER SPARE GRADE REFER TO CIVIL PROFILES FOR DEPTH BELOW GRADE CAST-IN PLACE CONCRETE (DYED RED) ENCASEMENT.
