Electrical · E-AGW4J

Common Bonding Ground Bus

Materials

About this detail

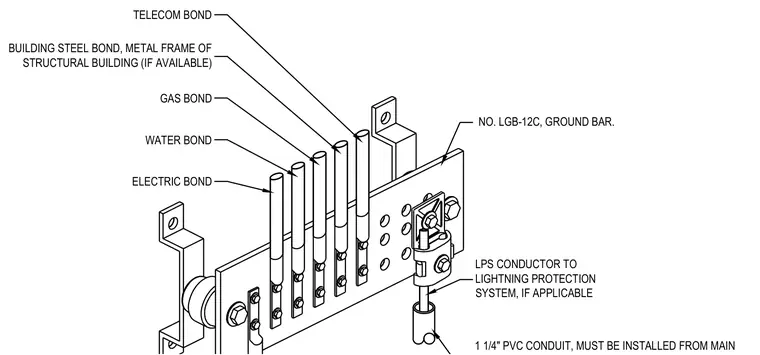

A ground bar, designated as number LGB-12C, receives multiple grounding conductors including an electric bond, water bond, gas bond, building steel bond to the metal frame of the structural building, and a telecom bond. An lightning protection system conductor connects via a clamp to the assembly, with a one and one-quarter inch PVC conduit installed from the main.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
