A surface mounted light fixture with a maximum weight of forty pounds is suspended from overhead structural steel beams using universal I-beam flange clamps and additional channels where mains are not available. Four quarter-inch diameter sheet metal screws with fender washers secure the fixture housing to the suspension channel, with a gasket placed between the fixture and ceiling to prevent leaks. Positive mechanical fixture clamps are prohibited.

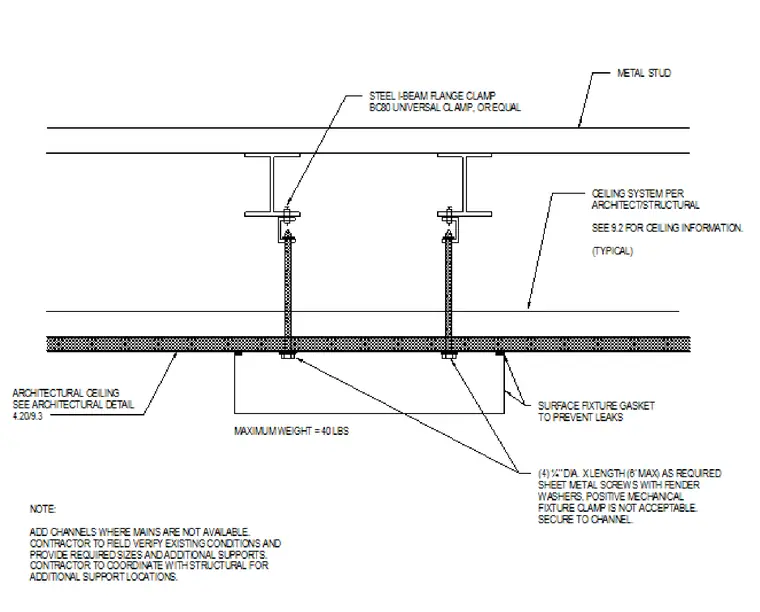

CEILING SYSTEM PER ARCHITECT/STRUCTURAL SEE 9.2 FOR CEILING INFORMATION. (TYPICAL) SURFACE FIXTURE GASKET TO PREVENT LEAKS (4) ¼" DIA. X LENGTH AS REQUIRED SHEET METAL SCREWS WITH FENDER WASHERS, POSITIVE MECHANICAL FIXTURE CLAMP IS NOT ACCEPTABLE. SECURE TO CHANNEL. MAXIMUM WEIGHT = 40 LBS ARCHITECTURAL CEILING SEE ARCHITECTURAL DETAIL 4.20/9.3 * ADD CHANNELS WHERE MAINS ARE NOT AVAILABLE. REFER TO S2.1 & S2.2 FOR FRAMING
