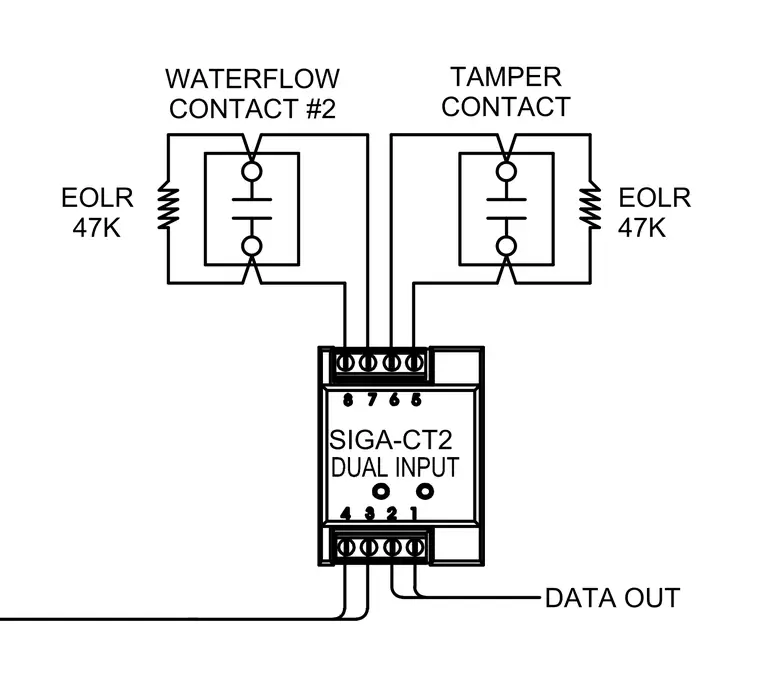

A SIGA-CT2 dual input module interfaces with a waterflow contact and a tamper contact using supervised circuits containing 47k end-of-line resistors. Terminal connections route the monitoring signals to the module while a data out line transmits the status to the fire alarm control panel. Each switch circuit maintains proper supervision through the end-of-line resistor configuration.
