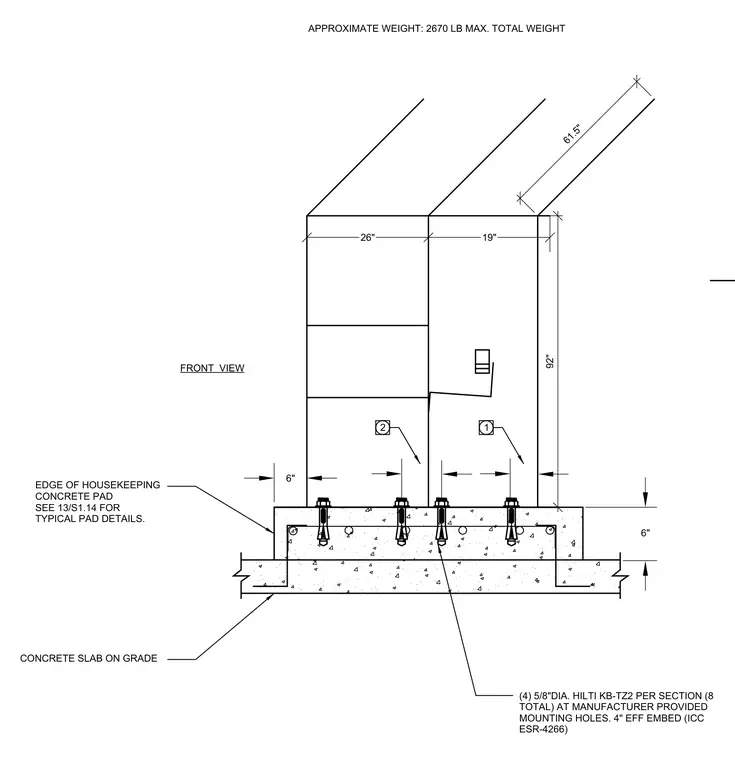

An equipment unit with a maximum total weight of 2670 pounds is anchored to a concrete housekeeping pad over a concrete slab-on-grade. Four 5/8-inch diameter Hilti KB-TZ2 expansion anchors are utilized per section for a total of eight anchors, installed through manufacturer-provided mounting holes with a 4-inch effective embedment in accordance with ICC ESR-4266. The housekeeping pad edges align with dimensions of 26 inches and 19 inches, with overall height dimensions reaching 92 inches and an extension of 61.5 inches. Typical pad details are coordinated per the structural drawing reference.
6" 61.5" 26" 19" 92" 6" APPROXIMATE WEIGHT: 2670 LB MAX. TOTAL WEIGHT (4) 5/8"DIA. HILTI KB-TZ2 PER SECTION (8 TOTAL) AT MANUFACTURER PROVIDED MOUNTING HOLES. 4" EFF EMBED (ICC ESR-4266) EDGE OF HOUSEKEEPING CONCRETE PAD SEE 13/S1.14 FOR TYPICAL PAD DETAILS. FRONT VIEW CONCRETE SLAB ON GRADE 2 1
