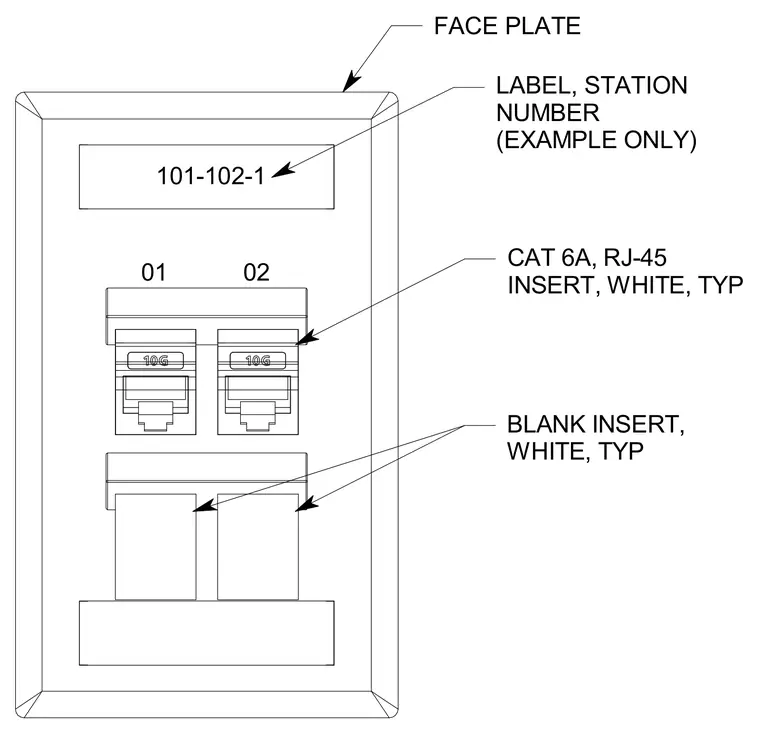

A white faceplate houses Category 6A RJ-45 data inserts alongside typical white blank inserts for unused ports. A dedicated label area displays the station number for identification. The modular arrangement accommodates network drops with standard positioning.
CAT 6A, RJ-45 INSERT, WHITE, TYP BLANK INSERT, WHITE, TYP LABEL, STATION NUMBER (EXAMPLE ONLY) FACE PLATE 01 02 101-102-1
