Wireless Lighting Control Sensors and Keypad Details

Elements

About this detail

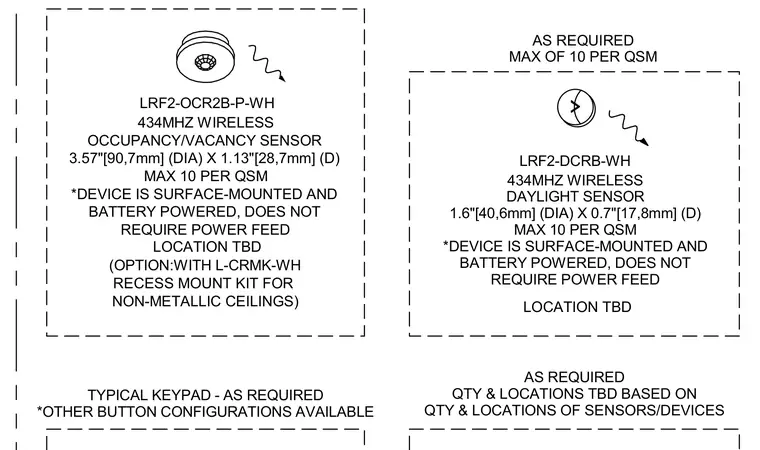

Wireless lighting control system components include the LRF2-OCR2B-P-WH 434MHz wireless occupancy and vacancy sensor measuring 3.57 inches in diameter by 1.13 inches deep, alongside the LRF2-DCRB-WH 434MHz wireless daylight sensor measuring 1.6 inches in diameter by 0.7 inches deep. Both devices are surface-mounted and battery-powered, requiring no power feed, with a maximum of ten devices per quantum sensor module. The occupancy sensor includes an optional recess mount kit for non-metallic ceilings designated as L-CRMK-WH. Typical keypads are provided as required with variable button configurations based on the quantity and placement of connected sensors.
