Unistrut Pendant Mounted 4 Foot Fixture Mounting Detail

Materials

Metal (misc.)

Elements

Walls Floors / Slabs Anchors / Embeds

Connections

Base Plate / Anchorage

About this detail

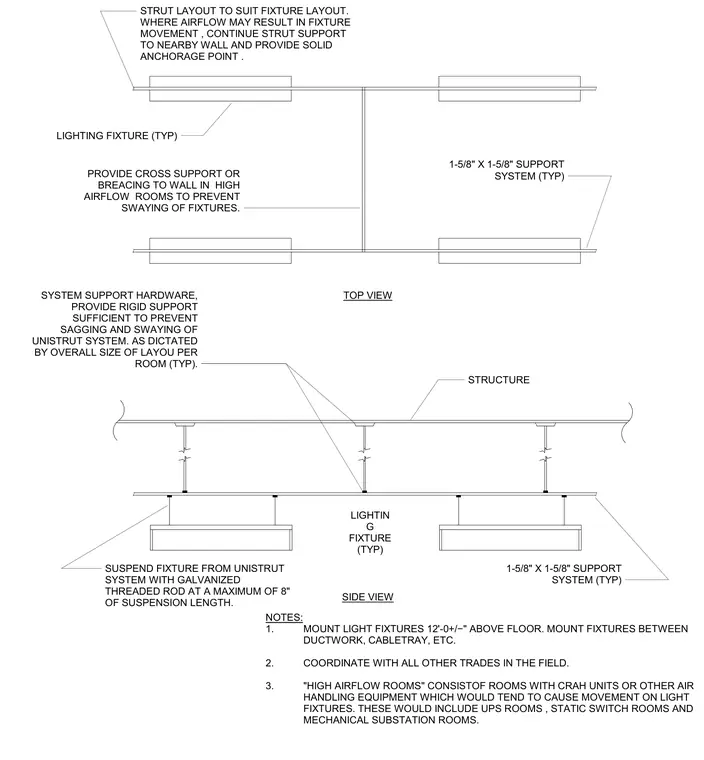

Lighting fixtures are suspended from an overhead structure using a 1-5/8 inch by 1-5/8 inch metal framing support system and galvanized threaded rods at a maximum suspension length of 8 inches. The strut layout is coordinated to suit the fixture layout and is supported rigidly to prevent sagging and swaying. In high airflow rooms such as computer room air handler units, uninterruptible power supply rooms, static switch rooms, and mechanical substation rooms, cross support or bracing to a nearby wall is provided to prevent fixture movement. Fixtures are mounted approximately 12 feet above the finished floor, routed between ductwork and cable trays, and coordinated with all other trades in the field.
