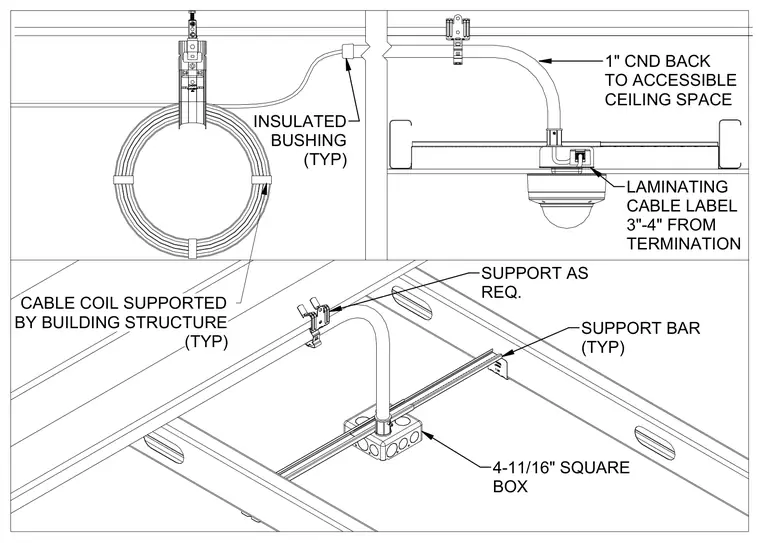

The security camera mounts in a hard-lid ceiling using a four and eleven-sixteenths inch square box supported by a typical support bar and supplemental supports as required. A one-inch conduit routes back to an accessible ceiling space fitted with an insulated bushing. Excess cable is coiled and supported by the building structure with a laminating cable label placed three to four inches from the termination.
SUPPORT BAR (TYP) 4-11/16" SQUARE BOX LAMINATING CABLE LABEL 3"-4" FROM TERMINATION CABLE COIL SUPPORTED BY BUILDING STRUCTURE (TYP) INSULATED BUSHING (TYP) SUPPORT AS REQ. 1" CND BACK TO ACCESSIBLE CEILING SPACE
