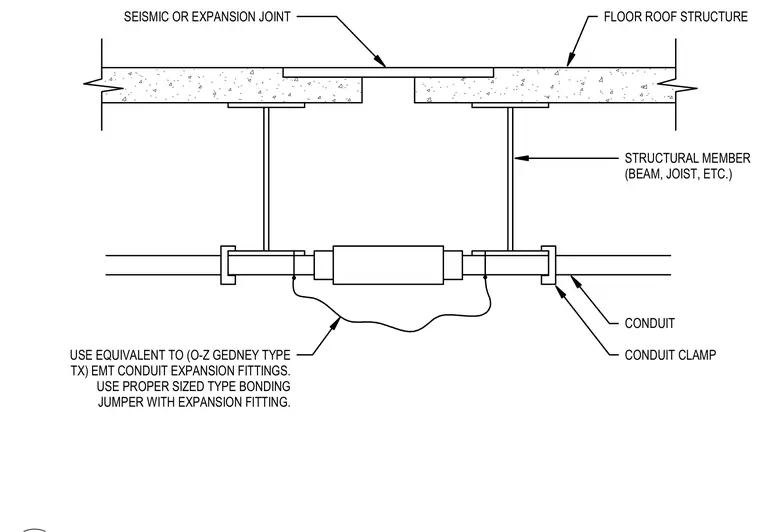

Electrical conduit spans across a seismic or expansion joint in a floor or roof structure using an electrical metallic tubing expansion fitting equivalent to an O-Z/Gedney Type TX. The conduit is secured on both sides of the joint by conduit clamps attached to structural members such as beams or joists. A properly sized bonding jumper is installed with the expansion fitting to maintain electrical continuity across the joint.
FLOOR ROOF STRUCTURE SEISMIC OR EXPANSION JOINT CONDUIT CLAMP STRUCTURAL MEMBER (BEAM, JOIST, ETC.) USE EQUIVALENT TO (O-Z GEDNEY TYPE TX) EMT CONDUIT EXPANSION FITTINGS. USE PROPER SIZED TYPE BONDING JUMPER WITH EXPANSION FITTING. CONDUIT
