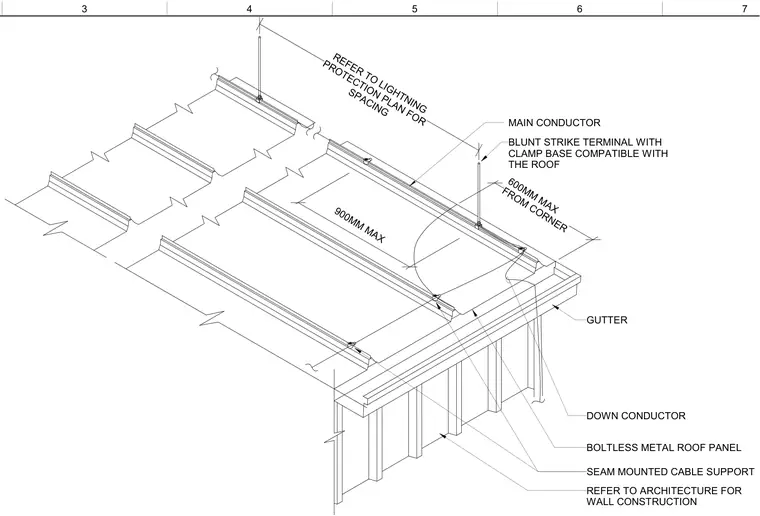

A blunt strike terminal connects with a clamp base compatible with the boltless metal roof panel. A main conductor runs along the roof, secured by seam-mounted cable supports spaced at a maximum of nine hundred millimeters. The down conductor routes toward the gutter, maintaining a maximum spacing of six hundred millimeters from the roof corner. Wall construction details are coordinated per architecture.
900MM MAX REFER TO LIGHTNING PROTECTION PLAN FOR SPACING MAIN CONDUCTOR BLUNT STRIKE TERMINAL WITH CLAMP BASE COMPATIBLE WITH THE ROOF 600MM MAX FROM CORNER GUTTER REFER TO ARCHITECTURE FOR WALL CONSTRUCTION BOLTLESS METAL ROOF PANEL SEAM MOUNTED CABLE SUPPORT DOWN CONDUCTOR 3 4 5 6 7
