Electrical · E-AA8W8

Wet Scrubber Main Booster Pump Motor Control Wiring Diagram

Elements

About this detail

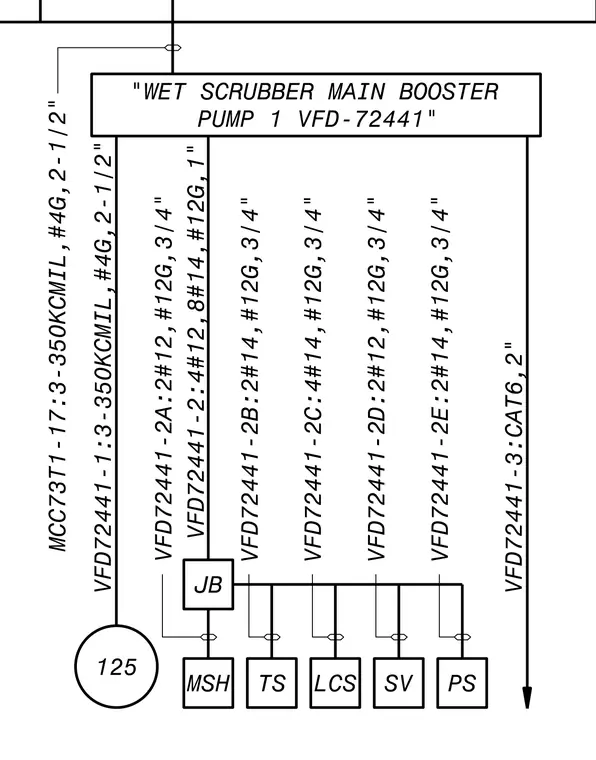

This electrical schematic details the power feed and control connections for wet scrubber main booster pump VFD-72441. A feeder from motor control center MCC73T1-17 utilizes three 350 KCMIL conductors and one number 4 ground in a two-and-a-half-inch conduit to supply the variable frequency drive. Output lines route power and control signals from the VFD through a junction box to local field devices including a motor space heater, temperature switch, local control station, solenoid valve, and pressure switch. A separate two-inch CAT6 communication line is also routed to the unit.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
