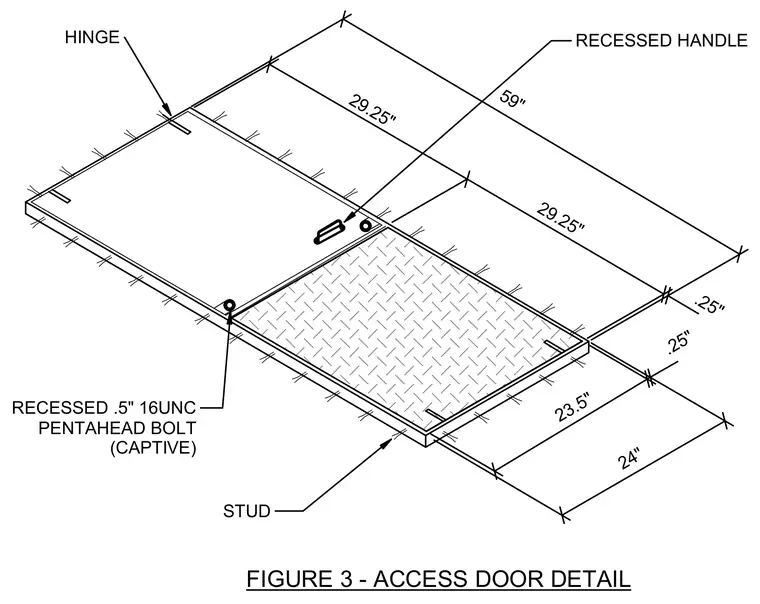

An access door assembly features a flush panel equipped with a recessed handle and hinges along one edge. Captive recessed half-inch 16UNC pentahead bolts secure the door in place. The overall assembly measures fifty-nine inches in length and twenty-four inches in width.
FIGURE 3 - ACCESS DOOR DETAIL HINGE RECESSED HANDLE STUD RECESSED .5" 16UNC PENTAHEAD BOLT (CAPTIVE) 59" 29.25" 29.25" 24" 23.5" .25" .25"
