PLC-72 I/O Drop 4 Panel 72674 One-Line Diagram

Elements

About this detail

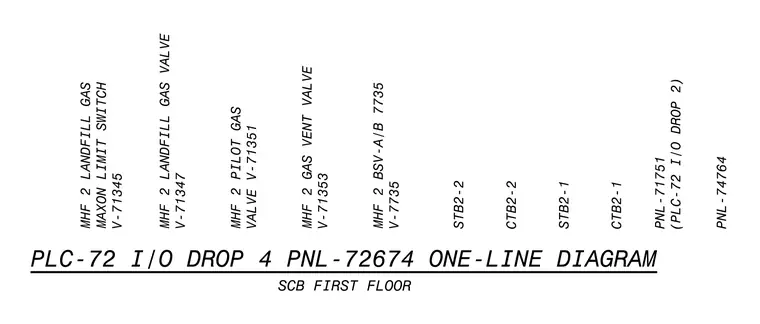

An electrical one-line diagram detailing the PLC-72 I/O drop 4 panel connections and associated gas valves on the first floor. The diagram maps out panel PNL-72674 along with terminal blocks, limit switches, and control valves such as V-71345, V-71347, V-71351, V-71353, and V-7735. Additional connections indicate panel PNL-74764, PNL-71751, and PLC-72 I/O drop 2 routing.
