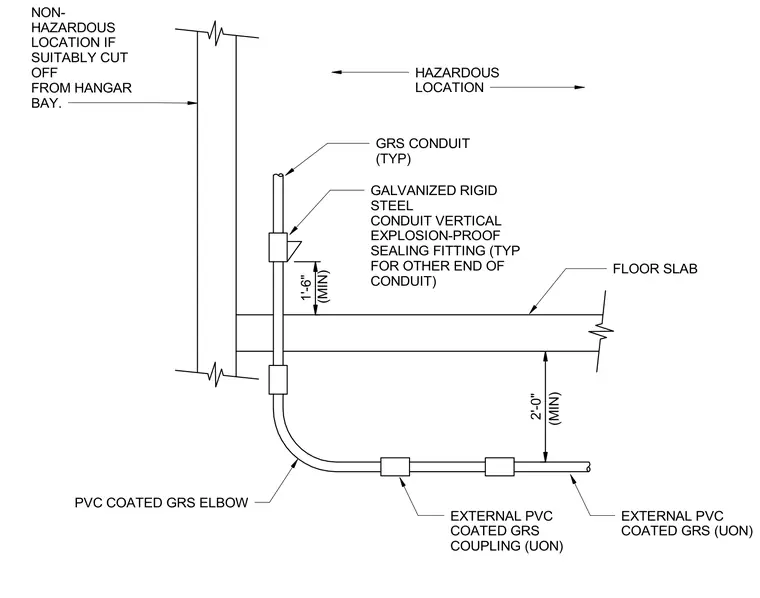

A galvanized rigid steel conduit transitions from a hazardous location through a floor slab using a vertical explosion-proof sealing fitting and an external PVC-coated galvanized rigid steel elbow. The assembly includes external PVC-coated galvanized rigid steel couplings connected with a minimum clearance from the floor slab. The installation maintains separation between hazardous and non-hazardous areas, such as an aircraft hangar bay, with designated minimum vertical dimensions above and below the slab.
GALVANIZED RIGID STEEL CONDUIT VERTICAL EXPLOSION-PROOF SEALING FITTING (TYP FOR OTHER END OF CONDUIT) NON- HAZARDOUS LOCATION IF SUITABLY CUT OFF FROM HANGAR BAY. EXTERNAL PVC COATED GRS COUPLING (UON) EXTERNAL PVC COATED GRS (UON) FLOOR SLAB GRS CONDUIT (TYP) HAZARDOUS LOCATION (MIN) PVC COATED GRS ELBOW 1'-6" 2'-0" (MIN)
