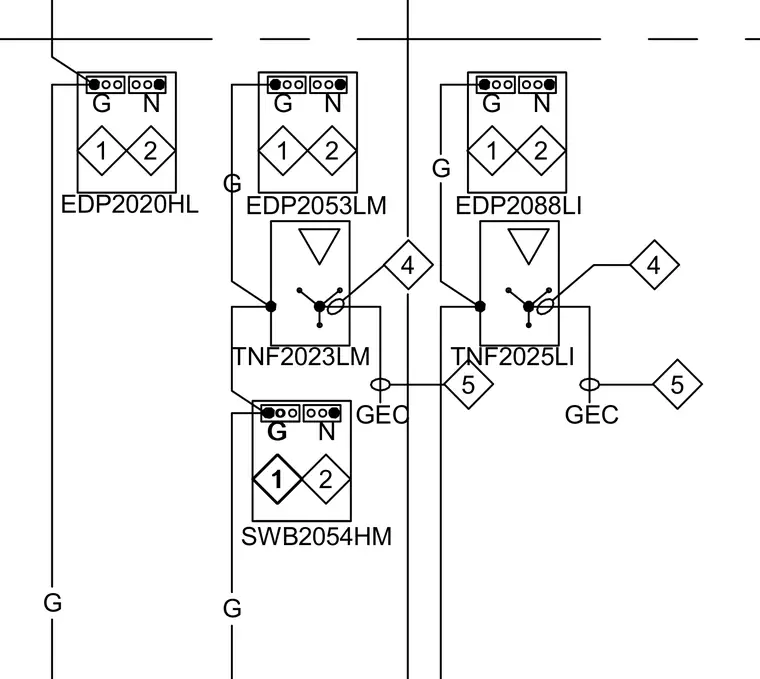

Electrical single-line diagram showing panelboard connections, equipment grounds, and grounding electrode conductors. The layout displays panelboards labeled EDP2020HL, EDP2053LM, SWB2054HM, and EDP2088LI connected alongside transformer units TNF2023LM and TNF2025LI. Grounding conductors (G) and grounding electrode conductors (GEC) interconnect the equipment with designated reference tags.
N G 1 2 EDP2020HL TNF2023LM N G 1 2 EDP2053LM SWB2054HM N G 1 2 G 1 GEC G G G TNF2025LI N G 1 2 EDP2088LI GEC G 5 5 4 4
