Electrical · E-9ZBZ8

SCB PLC I/O Drop 5 Control Panel Wiring Diagram

About this detail

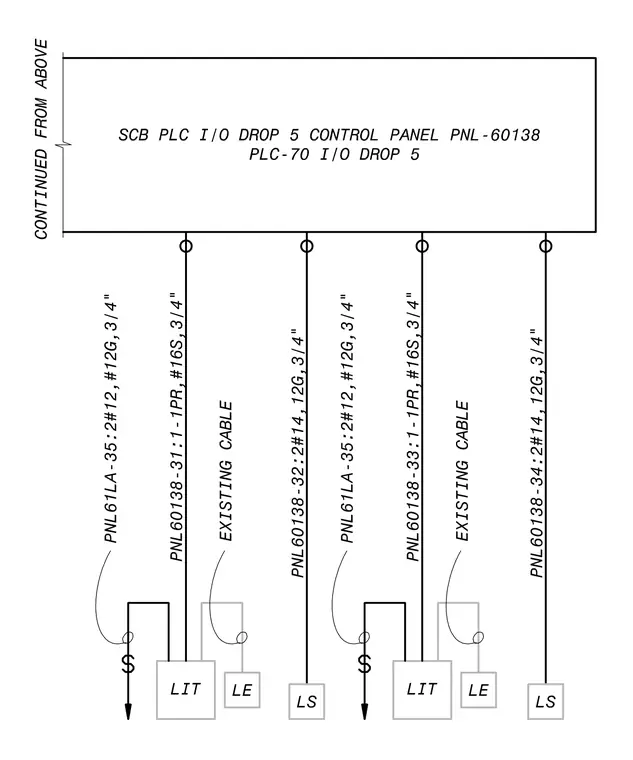

This electrical diagram details the conduit and wire terminations connecting to SCB PLC I/O Drop 5 Control Panel PNL-60138 and PLC-70 I/O Drop 5. The layout includes specific circuit designations routed through three-quarter-inch conduits, integrating both new wiring and existing cables. Conductors consist of number 12 and number 14 wire sizes with ground, as well as shielded single-pair number 16 instrumentation cables. Connected field devices include LIT, LE, and LS units.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
