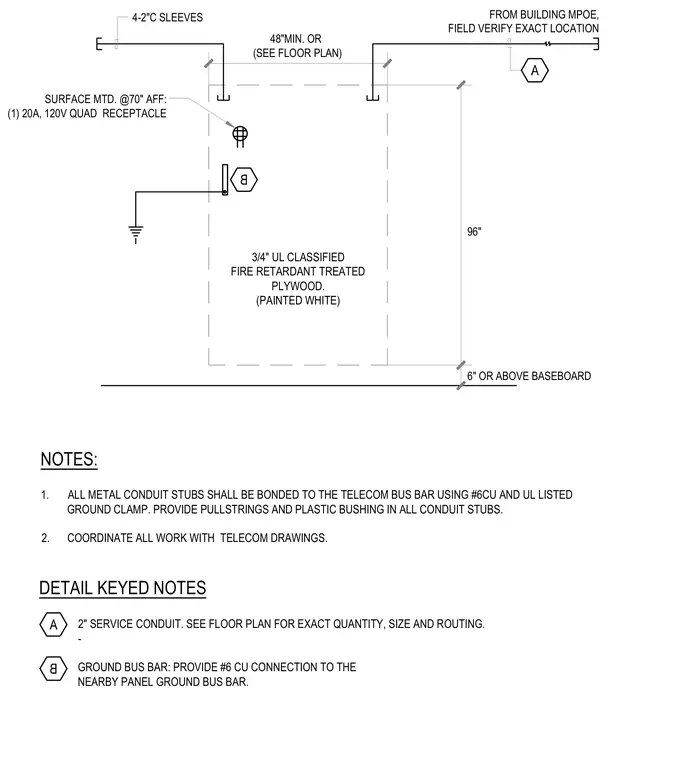

A telecom termination board is mounted on a three-quarter-inch UL-classified fire-retardant treated plywood backboard painted white. The assembly includes four two-inch conduit sleeves entering from above and a surface-mounted twenty-ampere one-hundred-twenty-volt quad receptacle positioned at seventy inches above finished floor. A ground bus bar is connected to the nearby panel ground bus bar using a number six copper conductor. All metal conduit stubs are bonded to the telecom bus bar using a number six copper wire and a UL-listed ground clamp, with pullstrings and plastic bushings provided in all conduit stubs.
96" 6" OR ABOVE BASEBOARD SURFACE MTD. @70" AFF: (1) 20A, 120V QUAD RECEPTACLE DETAIL KEYED NOTES 2" SERVICE CONDUIT. SEE FLOOR PLAN FOR EXACT QUANTITY, SIZE AND ROUTING. - GROUND BUS BAR: PROVIDE #6 CU CONNECTION TO THE NEARBY PANEL GROUND BUS BAR. 3/4" UL CLASSIFIED FIRE RETARDANT TREATED PLYWOOD. (PAINTED WHITE) 48"MIN. OR (SEE FLOOR PLAN) 4-2"C SLEEVES NOTES: 1. ALL METAL CONDUIT STUBS SHALL BE BONDED TO THE TELECOM BUS BAR USING #6CU AND UL LISTED GROUND CLAMP. PROVIDE PULLSTRINGS AND PLASTIC BUSHING IN ALL CONDUIT STUBS. 2. COORDINATE ALL WORK WITH TELECOM DRAWINGS. FROM BUILDING MPOE, FIELD VERIFY EXACT LOCATION A B A B
